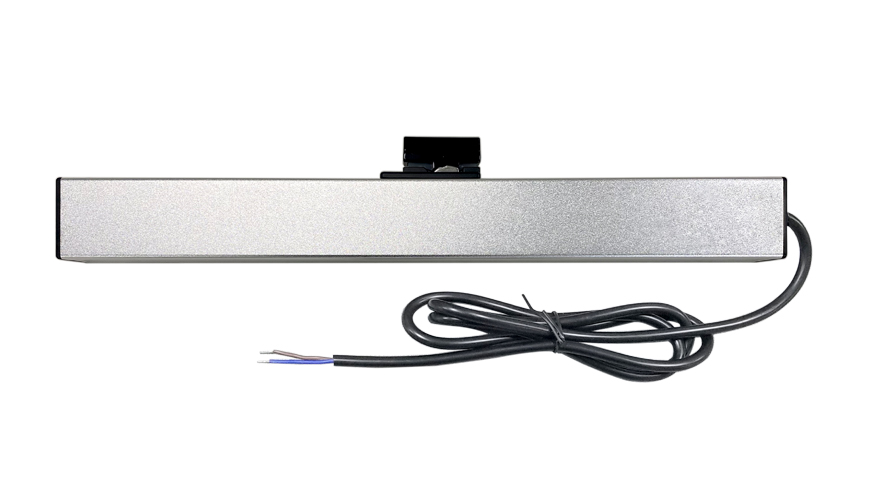

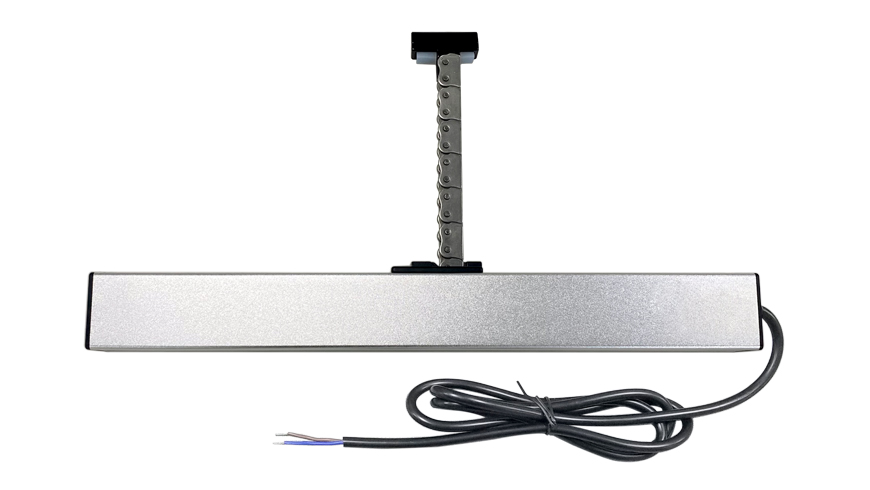

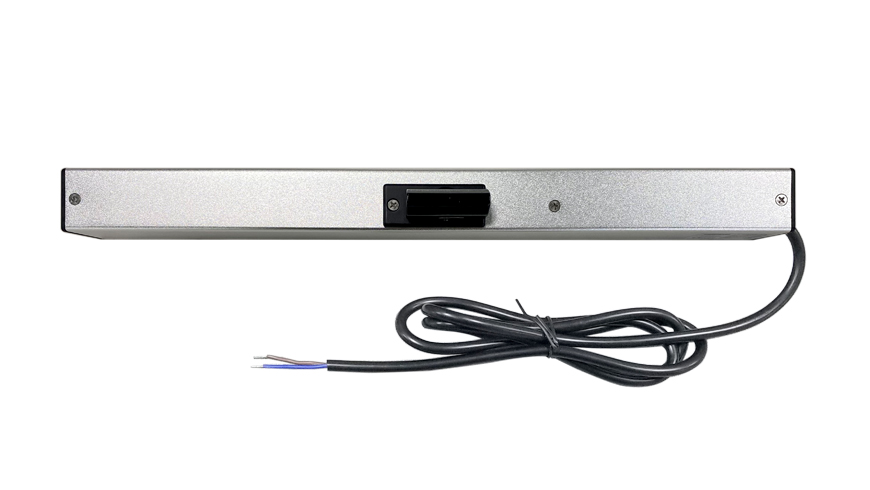

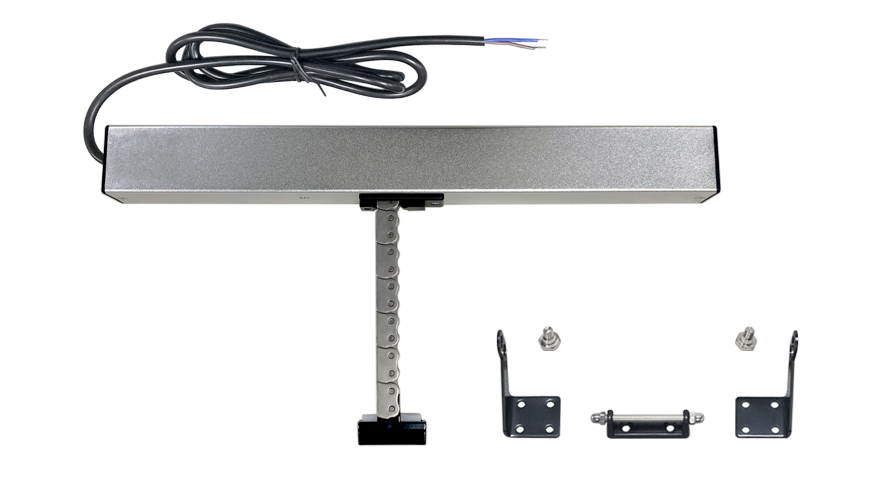

Single Large Chain Opener
Model: LK-SLC
- Work on 24VDC voltage
- Push/Pull force 400N
- Sandblasted oxidative surface treatment
- Electronic over current protection with relax function
- CE approved, 3 years guarantee
- For automatic operation of awning windows, casement windows, skylights, and curtain wall vents
| Model | Vin | Imax | Stroke | Force | Speed | IP class | Dimension |
| LK-SLC200-S-S | 24VDC | 1.5A | 200mm | 400N | 8mm/s | IP32 | 54*41*360mm |
| LK-SLC300-S-S | 24VDC | 1.5A | 300mm | 400N | 8mm/s | IP32 | 54*41*410mm |
| LK-SLC400-S-S | 24VDC | 1.5A | 400mm | 400N | 8mm/s | IP32 | 54*41*460mm |
| LK-SLC500-S-S | 24VDC | 1.5A | 500mm | 400N | 8mm/s | IP32 | 54*41*510mm |
| LK-SLC600-S-S | 24VDC | 1.5A | 600mm | 400N | 8mm/s | IP32 | 54*41*560mm |
| LK-SLC700-S-S | 24VDC | 1.5A | 700mm | 400N | 8mm/s | IP32 | 54*41*610mm |
| LK-SLC800-S-S | 24VDC | 1.5A | 800mm | 400N | 8mm/s | IP32 | 54*41*660mm |
Features:
- 24VDC safe voltage
- Push/Pull force 400N
- Stroke can be customized from 100mm to 1000mm
- Sandblasted oxidative surface treatment
- Simple and refined design, low noise operation
- Double link chain working more stably and smoothly
- Electronic overload cutoff and limit stop
- Endurance tests (10,000 cycles) are carried out
- Protection class IP32

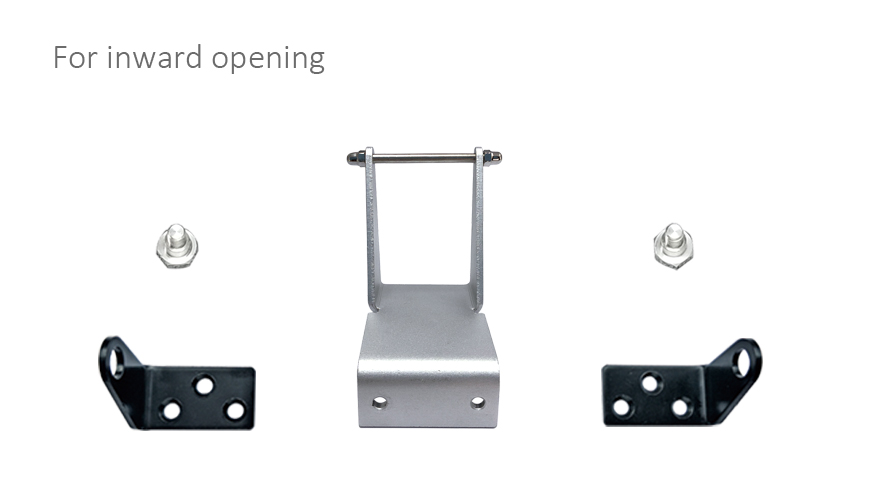

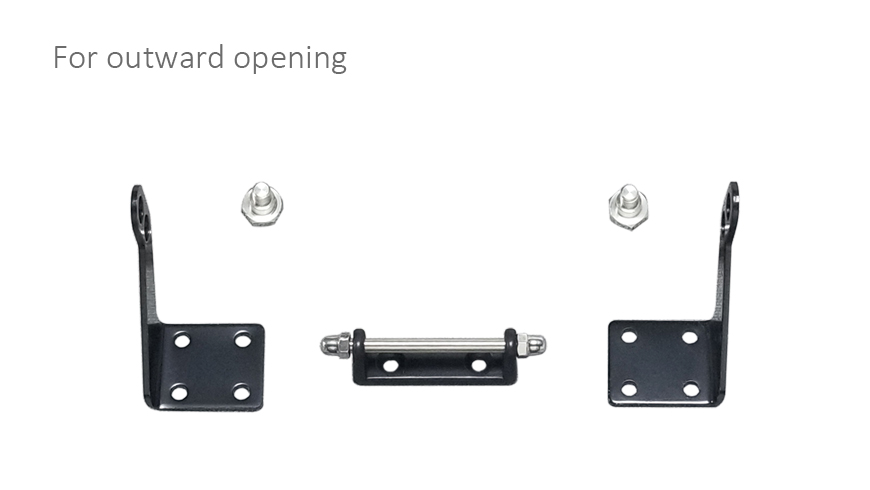

- Flexible optional installation
- CE approved, 3 years guarantee
