Features:

• Used in window opener, curtain motor and door opener 24VDC motor control
• Power indicator/reset, Open/Stop/Close & channel selection buttons
• Built-in 24VDC/10-40A UPS, batteries outputs when AC power failure, battery is charged automatically
• 120VAC or 230VAC input optional
• 4 working status LED indicators

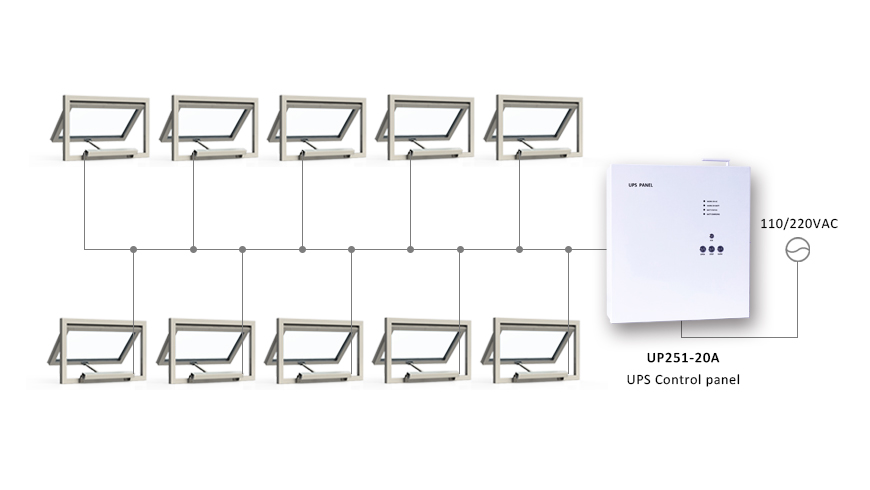

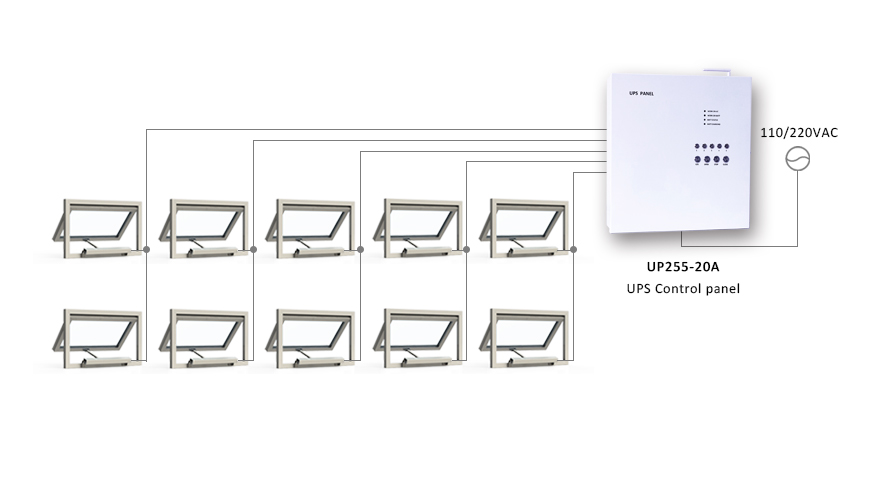

• Single Channel, dual Channel and five channel outputs
• Cascade with LinkAYL control panel that achieves windows of zone control and group control
• Can handle external input signals of manual switch, remote,smoke/gas/wind/rain sensors
• Output feedback signal
• Compatible with all LinkAYL remote
• Inching mode and continued-run mode settable
• With stroke memory function

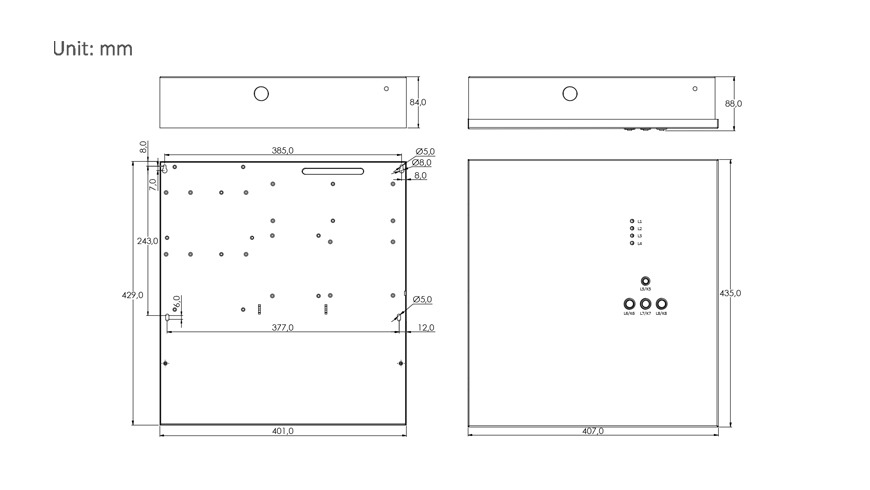

LK-UP251

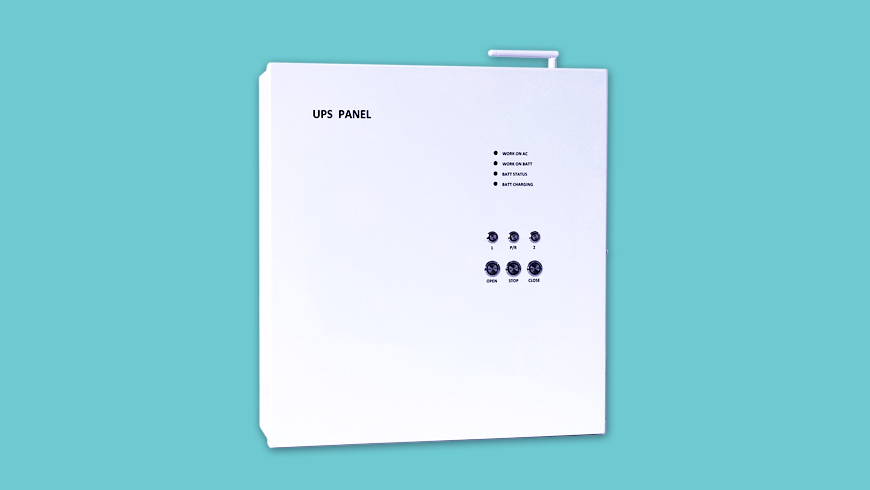

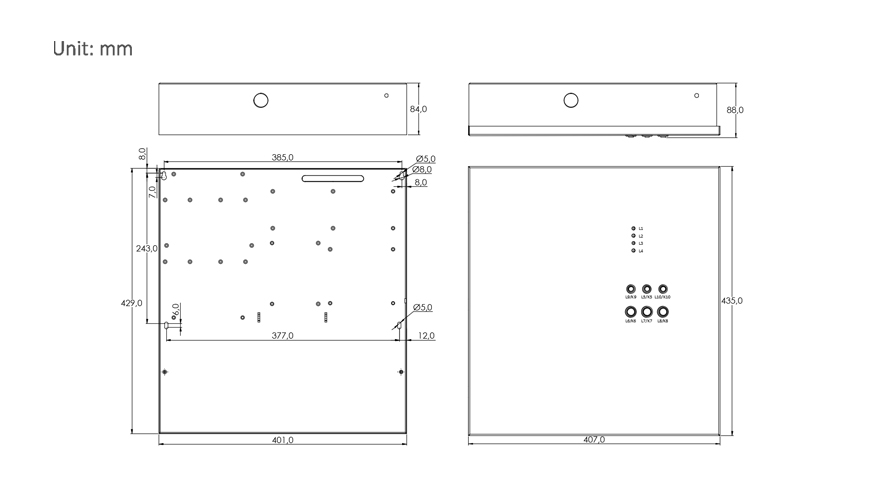

LK-UP252

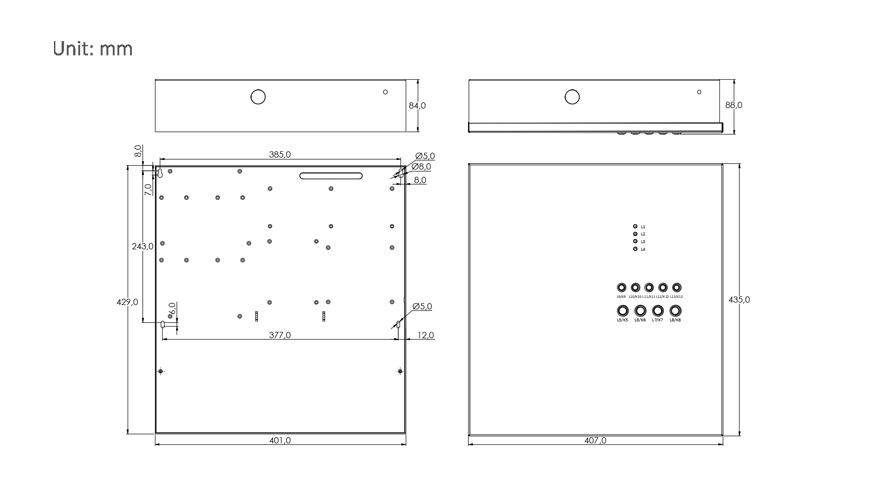

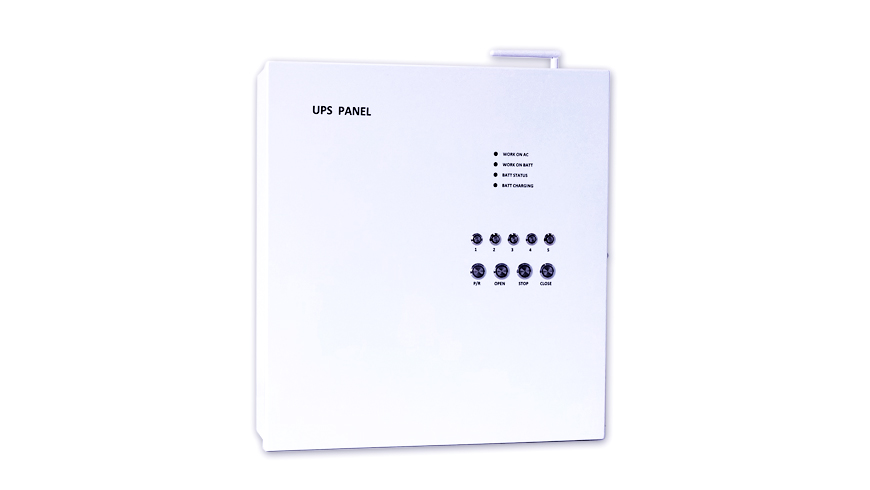

LK-UP255

Trade Terms:

• Payment: T/T
• MOQ: Sample or small quantity is acceptable
• OEM and ODM are available

Packaging & Shipping:

• Packaging detail: 1pcs/box or OEM box, 9 pcs/carton or customized
• Lead time: Sample will be 1-3 working days, regular order is 15-30 days
• Shipping: FEDEX, DHL, UPS for small quantity, big order by Sea or by Air
• Shipping port: Shenzhen

How do you place an order to us?

1. Send us an inquiry about the details of the item you need (Model, Color, Quantity or special needs.)
2. You will receive the Proforma Invoice showing the contents Including Company Information, Payment Details, Delivery Term.
3. Sample of standard model is available for your test.
4. Payment and bank slip.
5. Production and delivery will be arranged after the payment confirmed.
6. Delivery
