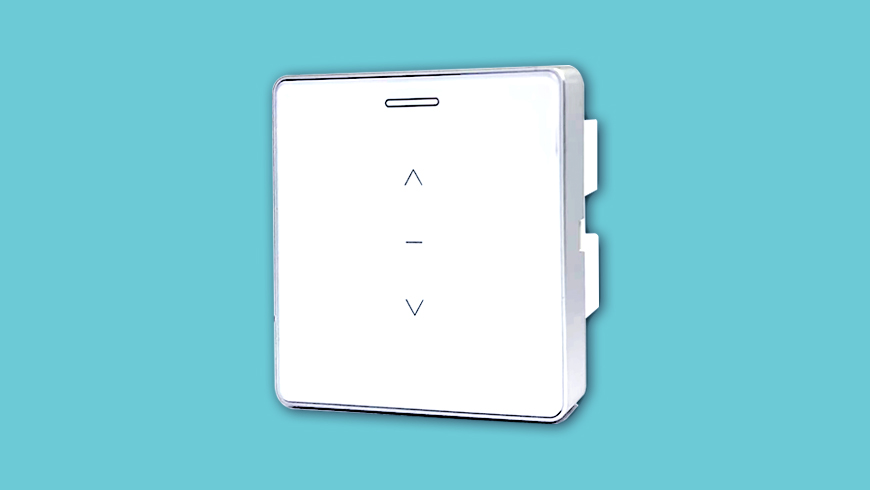

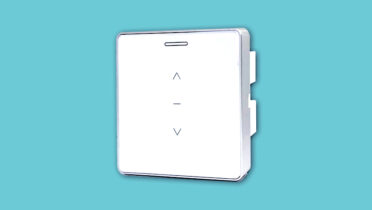

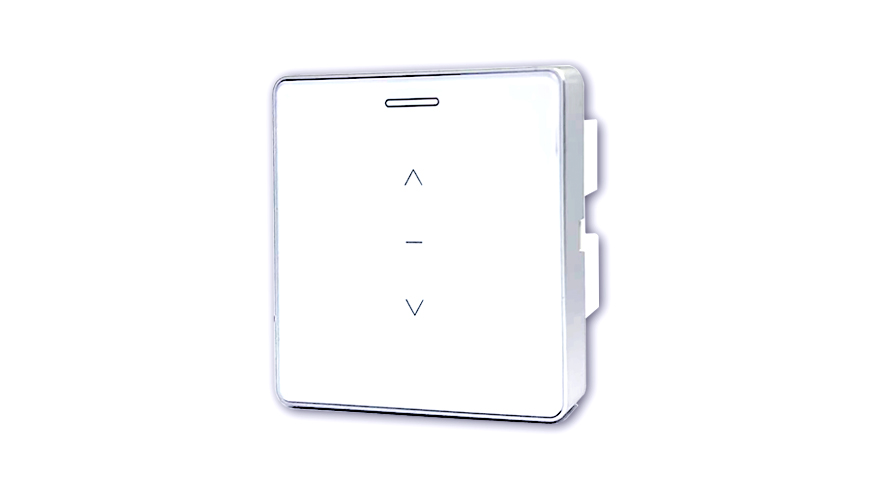

86 Type RF Touch Screen Controller
Model: LK-MR51
- 1 channel control
- 24VDC output
- Turn electric window opener forward/stop/reverse to open/close window

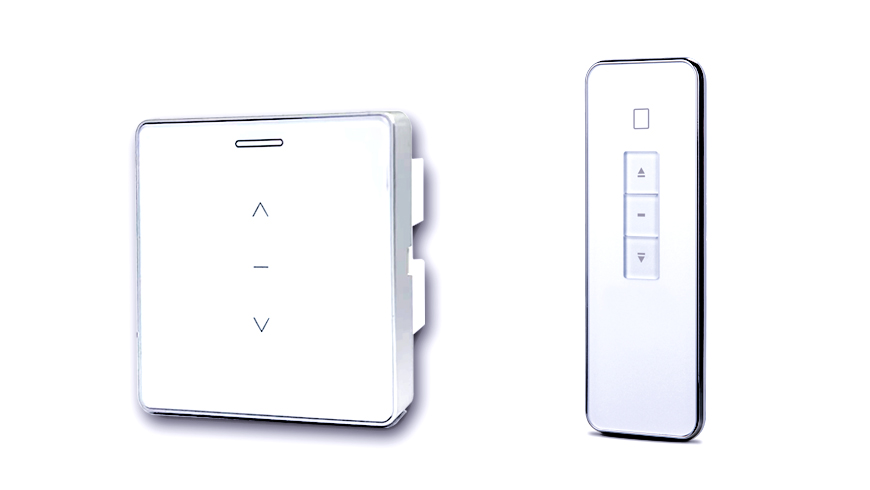

- Touch screen control and RF 433 remote control
- Standard 86 type, easy to install
- Wireless signal can pass through walls, floors and doors, be transmitted farther without obstacles
|
Ordering Code |
Channel | Vin (VAC) | Vout (VDC) | Iout (A) | Frequency (MHz) | Dimension (mm) |
| LK-MR513 | 1 | 100-240 | 24 | 3 | 433.92 | 86*86*35 |
| LK-MR515 | 1 | 100-240 | 24 | 5 | 433.92 | 86*86*35 |
Features:
- 1 channel control
- 24VDC output
- Touch screen control and RF 433 remote control
- Easy to install and operation
- Strong wireless transmission signal
- Made by low-power and high-speed CMOS technology
- Strong anti-interference ability
- Over current, short-circuit and temperature protection
- Cut power off automatically in 5 minutes to protect motors

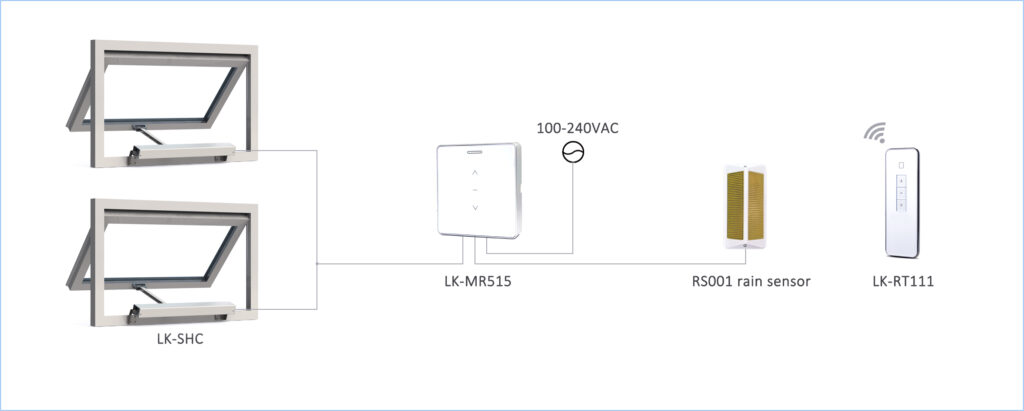

LK-MR515 controls two LK-SHC 700N single chain openers
LK-MR515 controls two LK-SHS 700N sync single chain opener

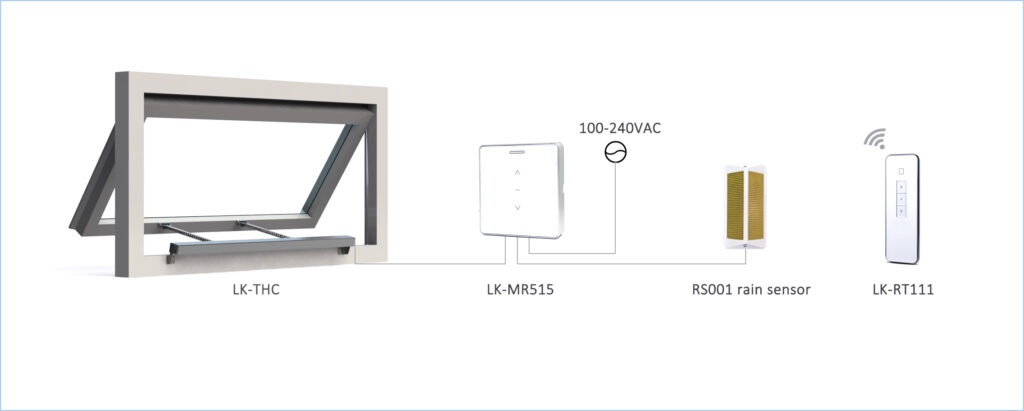

LK-MR515 controls one LK-THC 1400N twin chain openers

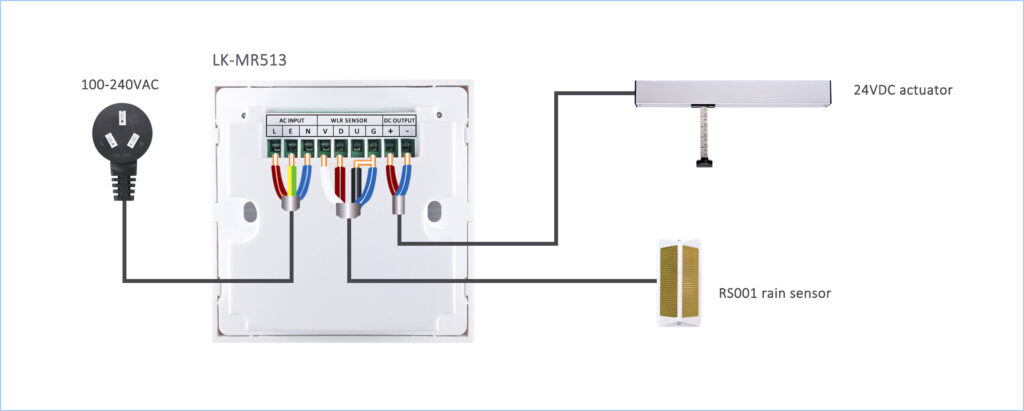

LK-MR513

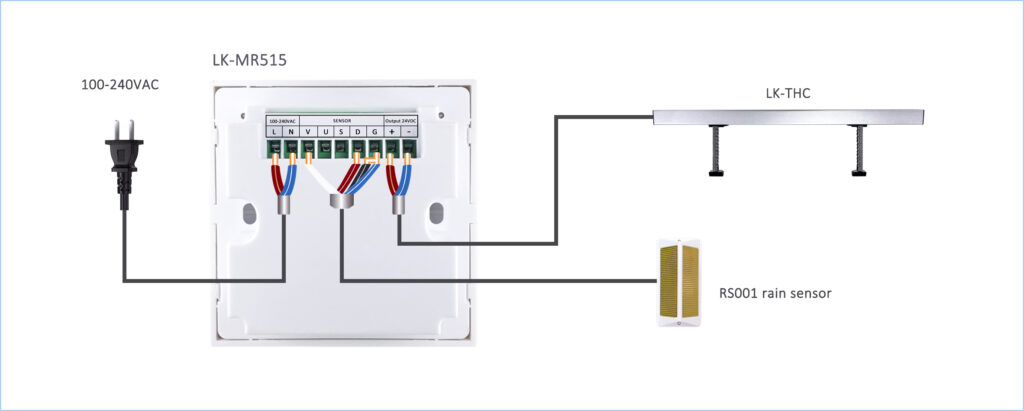

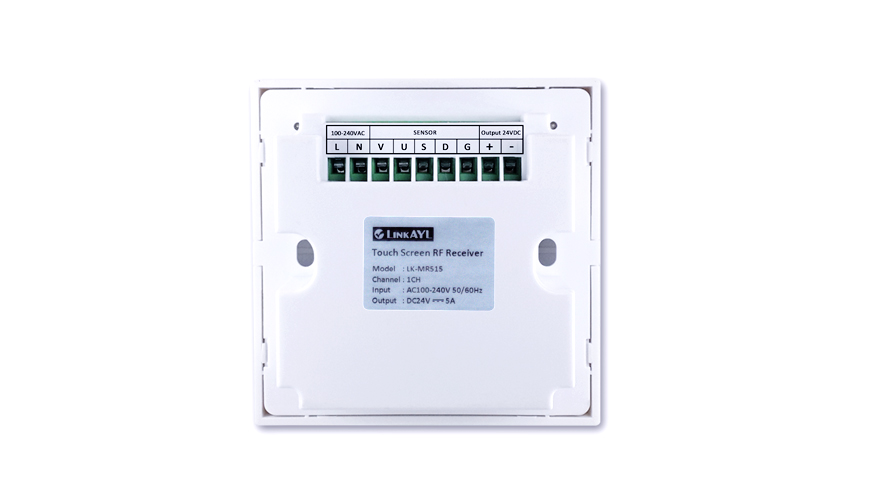

LK-MR515
Trade Terms:
- Payment: T/T
- MOQ: Sample or small quantity is acceptable
- OEM and ODM are available
Packaging & Shipping:
- Packaging detail: 1pcs/box or OEM box, 9 pcs/carton or customized
- Lead time: Sample will be 1-3 working days, regular order is 15-30 days
- Shipping: FEDEX, DHL, UPS for small quantity, big order by Sea or by Air
- Shipping port: Shenzhen
How do you place an order to us?
- Send us an inquiry about the details of the item you need (Model, Color, Quantity or special needs.)
- You will receive the Proforma Invoice showing the contents Including Company Information, Payment Details, Delivery Term.
- Sample of standard model is available for your test.
- Payment and bank slip.
- Production and delivery will be arranged after the payment confirmed.
- Delivery
