How to make electric window solutions

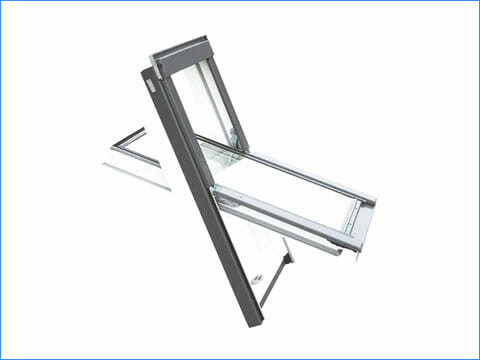

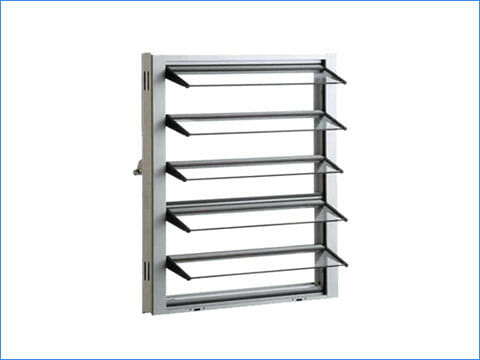

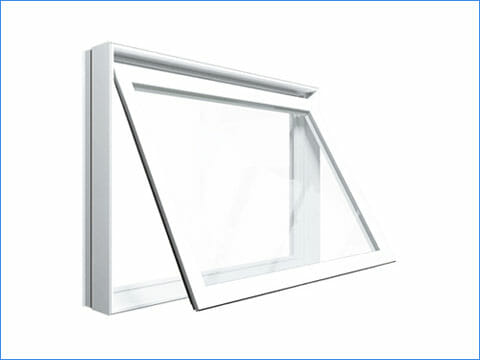

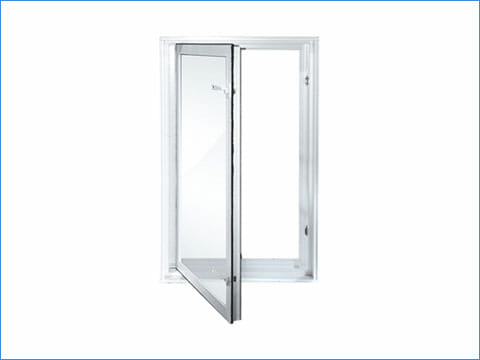

Choose the Window Type

Select the Actuator Type

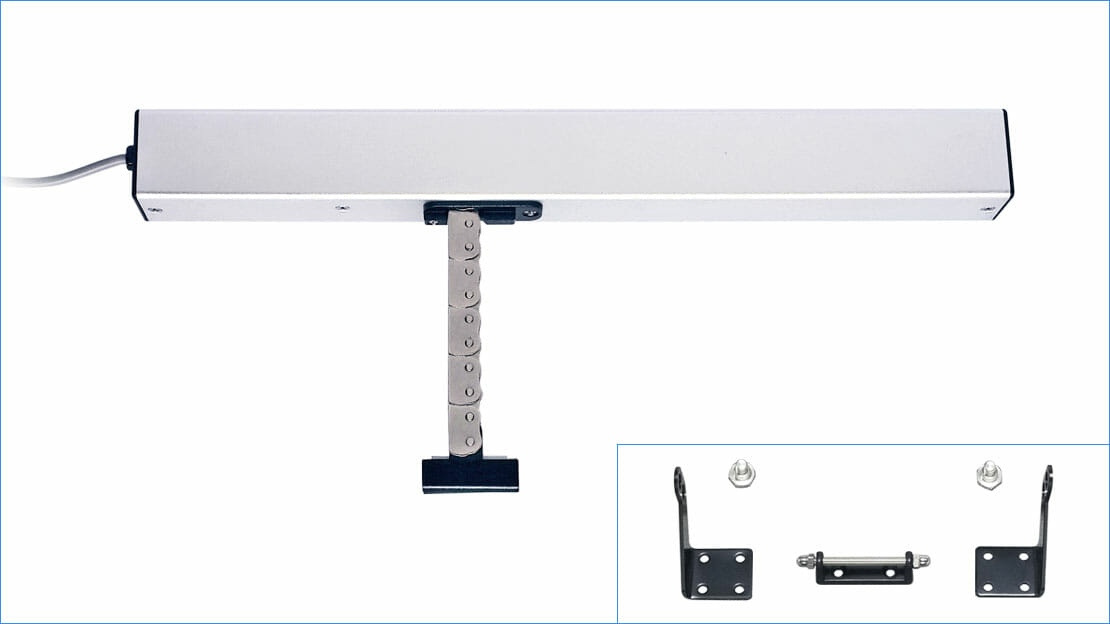

Single Chain Actuator

Working Voltage: 24VDC/230VAC
Travel Distance: 100mm-800mm
Push/Pull Force: 250N/400N
Travel Speed: 8mm/s
IP Class: IP32

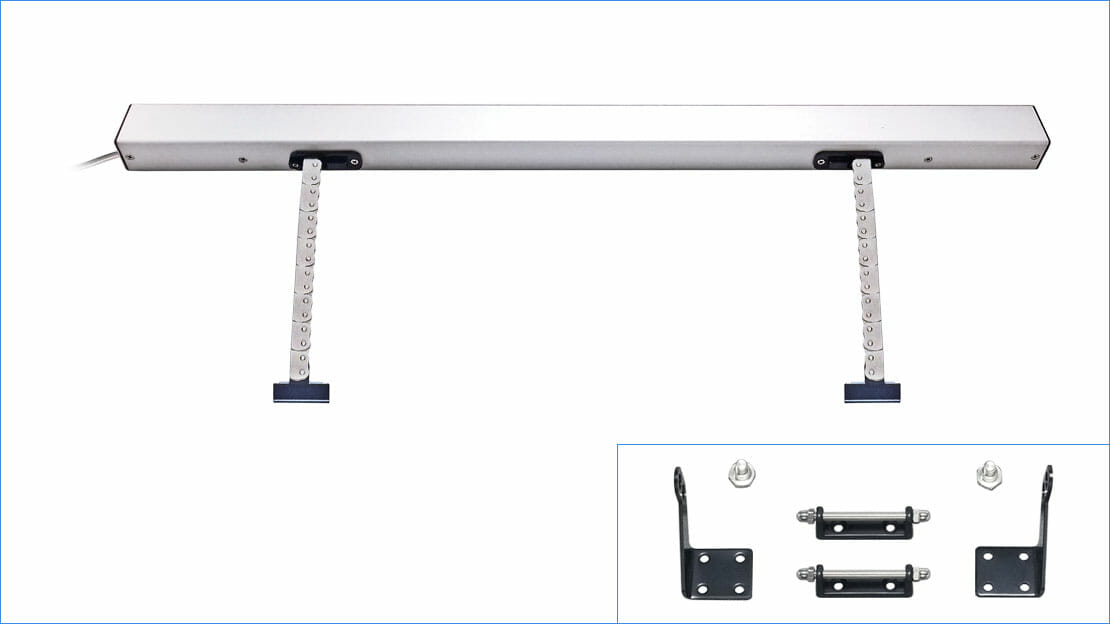

Twin Chain Actuator

Working Voltage: 24VDC
Travel Distance: 100mm-500mm
Push/Pull Force: 800N
Travel Speed: 8mm/s
IP Class: IP32

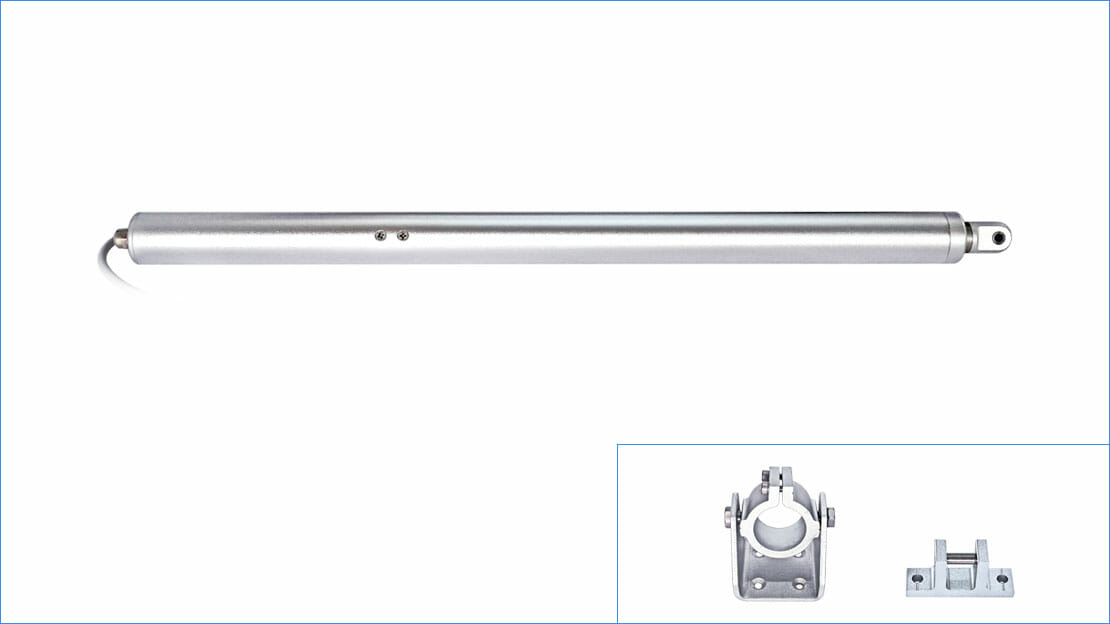

Linear Actuator

Working Voltage: 24VDC
Travel Distance: 100mm-800mm
Push/Pull Force: 600N/1000N/1500N
Travel Speed: 4-8mm/s
IP Class: IP65

Ensure the Actuator Model

Working Voltage

Options: DC24V and AC230V
Depends on your actual needs
Observe the local electrical rules

Travel Distance

Can be customized from 50mm to 1000mm or more
Depends on the window open angle
Notes that the practical angle window can open

Push-Pull Force

Options: 250N, 400N, 600N, 800N, 1000N, 1500N or more
Depends on the weight of the window
Consider wind, snow and other weather factors

Installation Bracket

Offers standard bracket for each type of actuator
Can be customized for special request
Depends on the installation position and window frame

Confirm the Control System

Case Study 12 Windows

Case Study 20 Windows

Case Study 50 Windows

Case Study 100 Windows

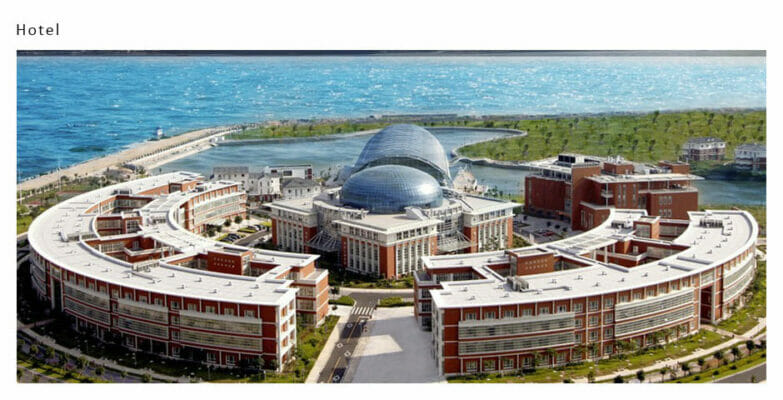

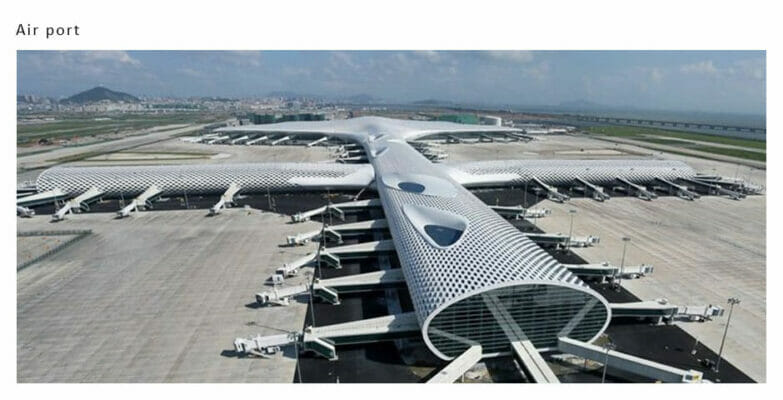

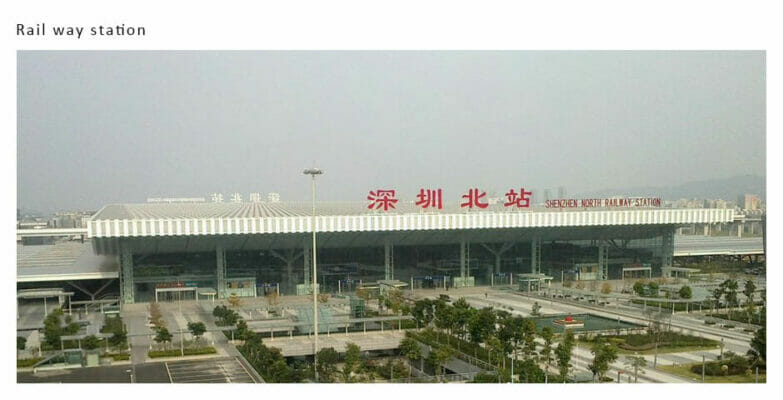

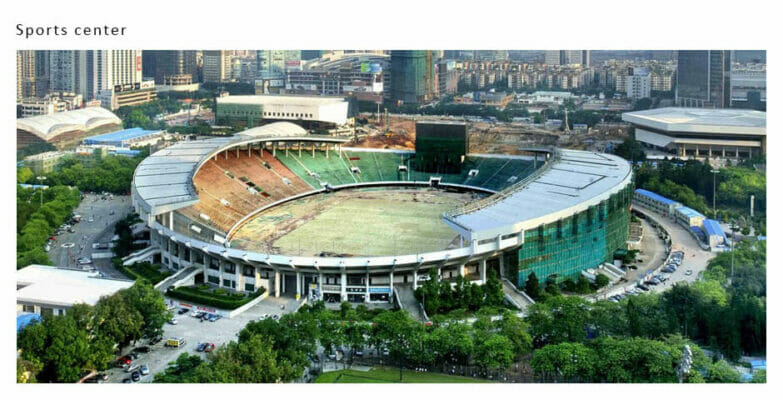

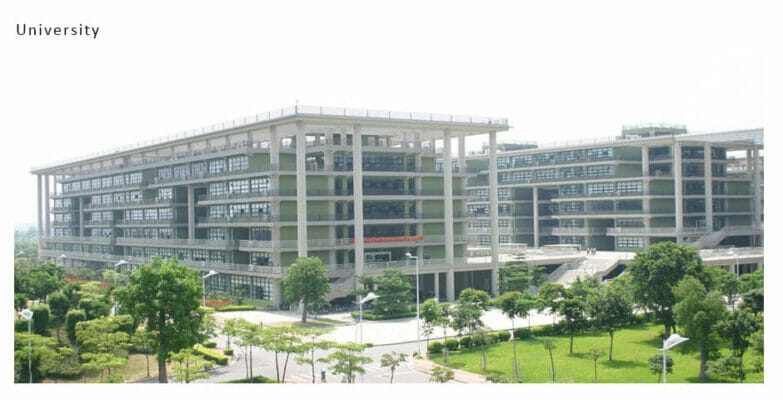

Window Automation Cases
